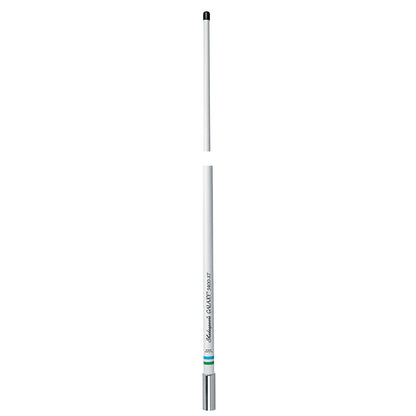

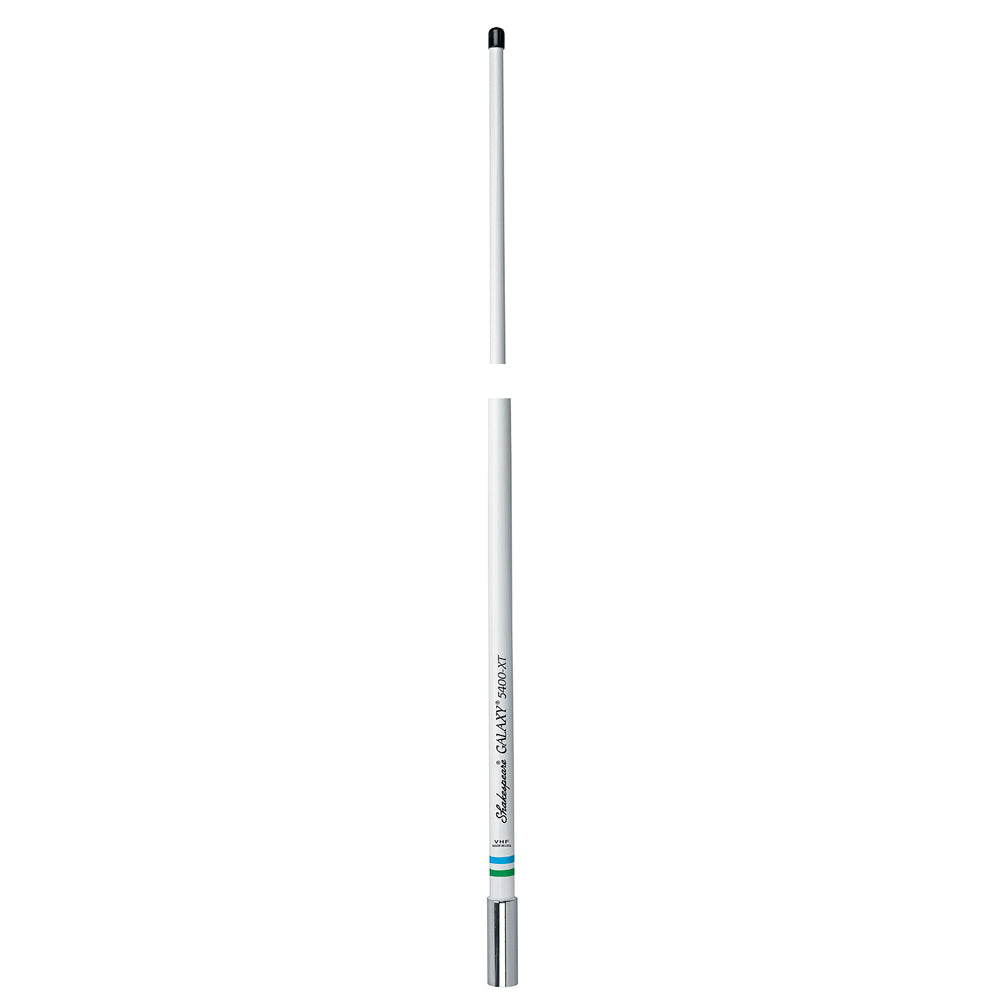

Shakespeare 5400-XT Galaxy 4' VHF Antenna - 3dB Gain [5400-XT]

Shakespeare 5400-XT Galaxy 4' VHF Antenna - 3dB Gain [5400-XT]

Regular price $199.99
Regular price Sale price $199.99
Sale Sold out

5400-XT Galaxy 4' VHF Antenna - 3dB Gain

The compact Galaxy® 5400-XT is an outstanding, general purpose 4' antenna of heavy duty construction for general purpose communications. Its at home on T-tops, hard-tops, and other positions aloft, where its small size can deliver maximum range.

Features:

  • Center-fed 1/2 wave coaxial sleeve
  • Brass and copper elements for maximum range
  • Stainless steel ferrule with standard 1"-14 thread

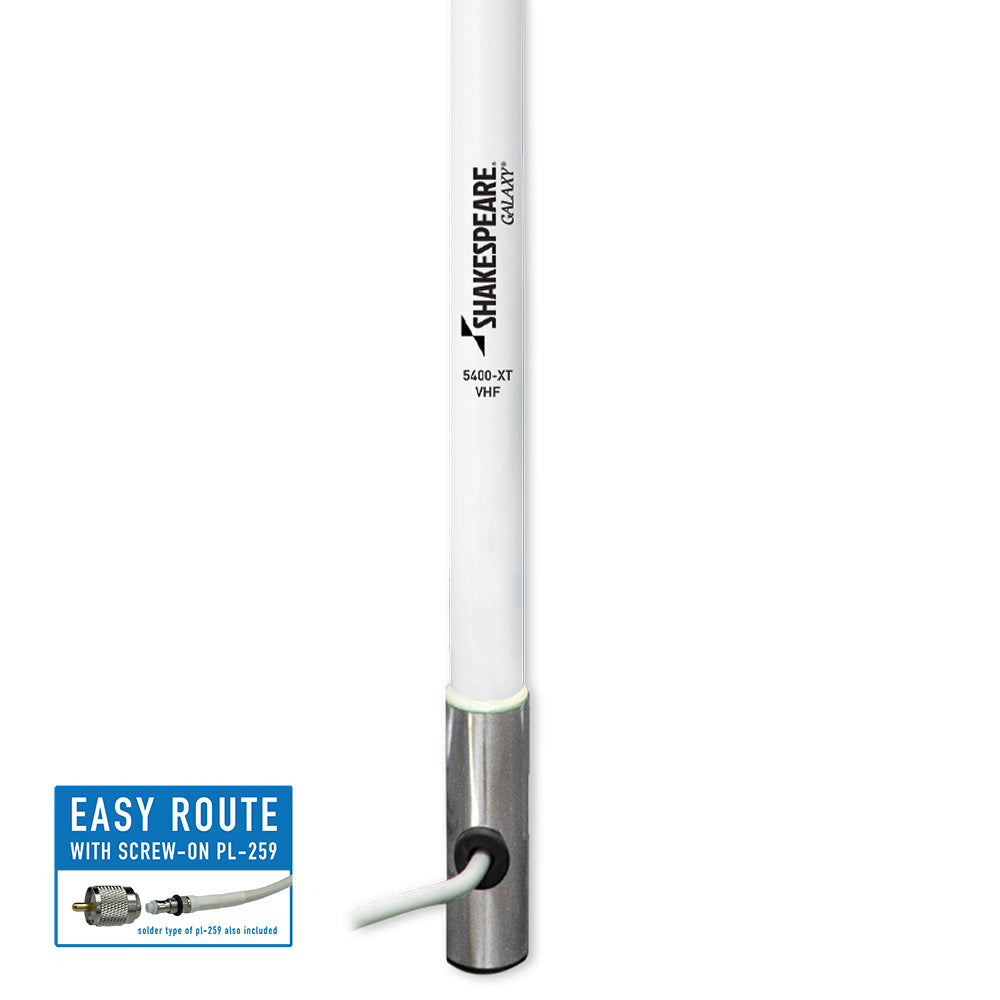

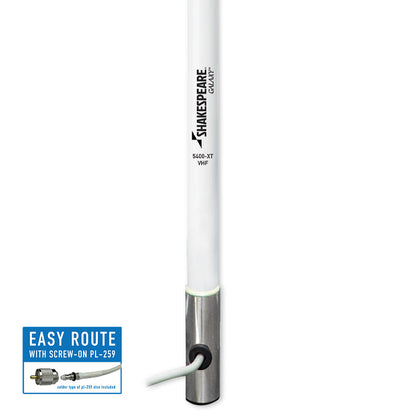

  • Includes 20' RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • One section
  • Shakespeare Limited Warranty: 5 years
  • Includes FME Cables

Technical Specifications:

  • Frequency: VHF Marine Band
  • Bandwidth: 5 MHz within 2.0:1 VSWR
  • SWR: Nominally 1.5:1 at 156.8 MHz
  • Gain: 3 dB
  • Max Input (Watts): 50 watts
  • Height (feet): 4

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 48"
  • Box Dimensions: 3"H x 3"W x 52"L WT: 2.5 lbs
  • UPC: 719441100605

Quick Guide (pdf)
